缝包/缝口缝纫机

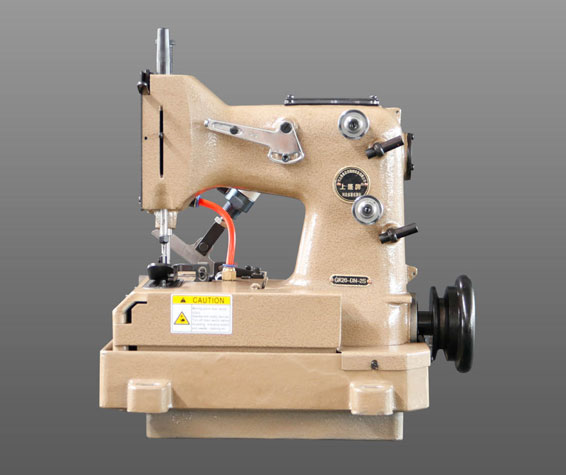

DSGK20-DN-2S封口缝纫机（单针）

产品详细

特点： GK20-DN-2S系列封口缝纫机式本公司在DN-2、DS-9、GK8等封口缝纫机基础上自行研发的一款全新封口缝纫机。该机采用封闭式自动润滑，具有较大的针杆行程，强劲的上、下同步送料机构，缝厚性能强，针距大，线迹均匀美观。

该机关键零部件采用优质碳素合金钢材料，经热处理精加工而成，零件表面具有较高硬度及光泽和尺寸精度，提高了机器运转平稳性，关键轴套，连修方便，式纸袋制造厂、水泥厂、水泥厂胡化工厂等缝制各种编织袋厂的专用设备。

Characteristics： GK20 - DN - 2 s series sealing machine type in DN - 2, DS - 9, GK8 sealing machine is developed on the basis of a new sealing machine. The machine adopts closed automatic lubrication, has a larger needle bar stroke, strong upper and lower synchronous conveying mechanism, thick seam performance is strong, stitch, stitch uniform appearance.

The key parts adopt high quality carbon steel materials, after finish machining, heat treatment parts surface with high hardness and gloss and dimensional accuracy, improve the smoothness of the machine is running, the shaft sleeve, even convenient, type paper bag factory hu chemical plants, cement, cement and other sewing special equipment of various kinds of woven bag factory.

主要技术参数Main Parameters:

最高缝纫速度 Max sewing speed	2200/min
最大缝纫厚度 Max sewing thickness	12mm
最大针距 Max stitch	15mm
线迹形式 Stitch type	单线链式线迹 Single chain track 双线链式线迹 Double chain track 双针四线链式线迹。左右针间距4mm,前后针间距8mm Double four chain track.About the needle spacing 4mm Before and needle spacing 8mm
采用机针 Needle Size	DR×2. 230-300 GK230-300
缝线规格 Suture stabdard	涤纶线21支4-9股 Polyester thread 21 4-9 stocks
电机功率 Eletric motor power	0.37Kw
机头外形包装尺寸 Packaging of machine	55×37×50cm
机头重量 Winght of machine	35kg
润滑方式 Lubrication way	刮油板供油飞溅润滑 Oil scraper plate oil splash lubrication
